Reducing parking lot light spill starts with checking where the calculated light falls outside the intended area. The useful question is how to keep illumination where the project needs it while reducing unwanted light toward the street and neighboring properties.
This Stetra Lighting project shows a parking lot design revision involving lower mounting heights, fewer fixtures on four selected poles, and shields installed on the affected fixtures. The revised photometric report shows a lower property-line average and maximum.
The calculated result: the reported property-line average decreased from 0.069 to 0.025 foot-candles, and the maximum decreased from 0.56 to 0.23 foot-candles. These are approximately 64% and 59% reductions in the displayed report values. They are calculation results, not measurements of the installed lighting.
The problem: controlling light near the site edge
During a design review, the layout was revised to reduce lighting toward the street and property line. The Google Earth background shows the relationship between the parking areas, street and building. The original map labels and imagery attribution are retained.
A boundary review needs more detail than a single average for the whole site. A modest property-line average can coexist with higher individual values along a particular edge. Reviewing the point-by-point values together with the maximum helps identify where attention is needed.
The Illuminating Engineering Society describes light trespass as unwanted encroachment of light, typically across a property boundary. The numerical criteria for a particular project still need to be established separately.
If you are reviewing a drawing for the first time, our guide to reading a photometric plan explains the fixture schedule, calculation grid and summary tables.
What changed in the revised lighting design?
The revision combined three practical changes. Because they were introduced together, this example does not isolate the contribution of each change.
1. Lower scheduled mounting heights

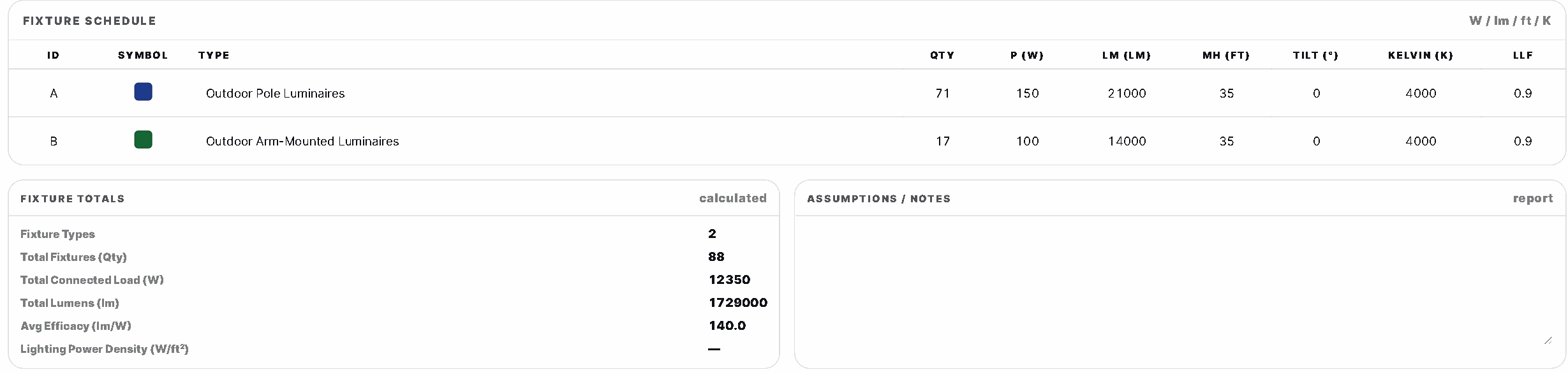

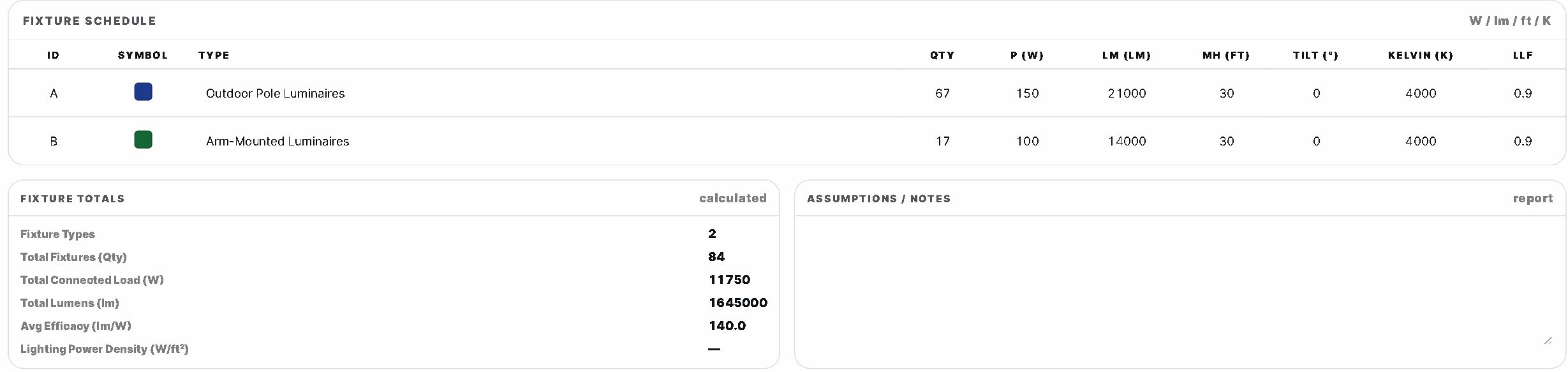

The fixture schedules show mounting heights changing from 35 ft to 30 ft for both listed fixture types. Mounting height affects the relationship between a luminaire, the target area and the site edge. A height change needs a recalculation: its effect depends on the optics, location, aiming and surrounding geometry.
2. Two fixtures instead of three on four selected poles
Four selected poles were changed from three fixtures to two. The Type A fixture quantity decreased from 71 to 67, while Type B remained at 17. The total fell from 88 to 84 fixtures. The change applied to those four poles; the rest of the site was not reduced by one-third.
3. Shields on the affected fixtures
Shields were installed on the affected fixtures in the revised installation. The revised drawing also includes a shielding note directed toward the relevant edge fixtures.
The available records do not establish how the shields were represented in the calculation model. The percentages in this article therefore compare the two reports; they do not quantify the shields’ individual effect. When evaluating a shielded option, confirm that the calculation represents the intended fixture and shielding configuration.
Before-and-after property-line results
The following values are taken from the two report summaries. Foot-candles describe illuminance at the calculation points. These project-specific values should not be used as universal parking lot or property-line limits.
| Reported metric | Before | After | Change |
|---|---|---|---|
| Property Line average | 0.069 fc | 0.025 fc | About 64% lower |
| Property Line maximum | 0.56 fc | 0.23 fc | About 59% lower |
| Property Line minimum | 0.001 fc | 0.001 fc | Same displayed value |
| Site average | 1.36 fc | 1.33 fc | About 2% lower |
| Site maximum | 20.1 fc | 20.1 fc | Same displayed value |
| Total fixtures | 88 | 84 | 4 fewer |
The revised report also lists connected load decreasing from 12,350 W to 11,750 W, a reduction of 600 W. This is a scheduled load difference. Annual energy savings would require operating hours and control information.
What the comparison tells us
The reported boundary average and maximum both decreased, while the reported Site average changed relatively little. This is useful evidence of lower calculated boundary illuminance in the revised report.
It does not establish that every boundary point decreased, or quantify street-only performance. A direct numerical comparison should use the same sampling locations, calculation plane, boundaries and operating assumptions. Those model details should be checked before treating a report comparison as a controlled test of a particular intervention.
Both schedules list a light-loss factor of 0.9. Confirm the full calculation settings before labeling the results as initial or maintained illuminance.
See the heatmaps and lighting renders

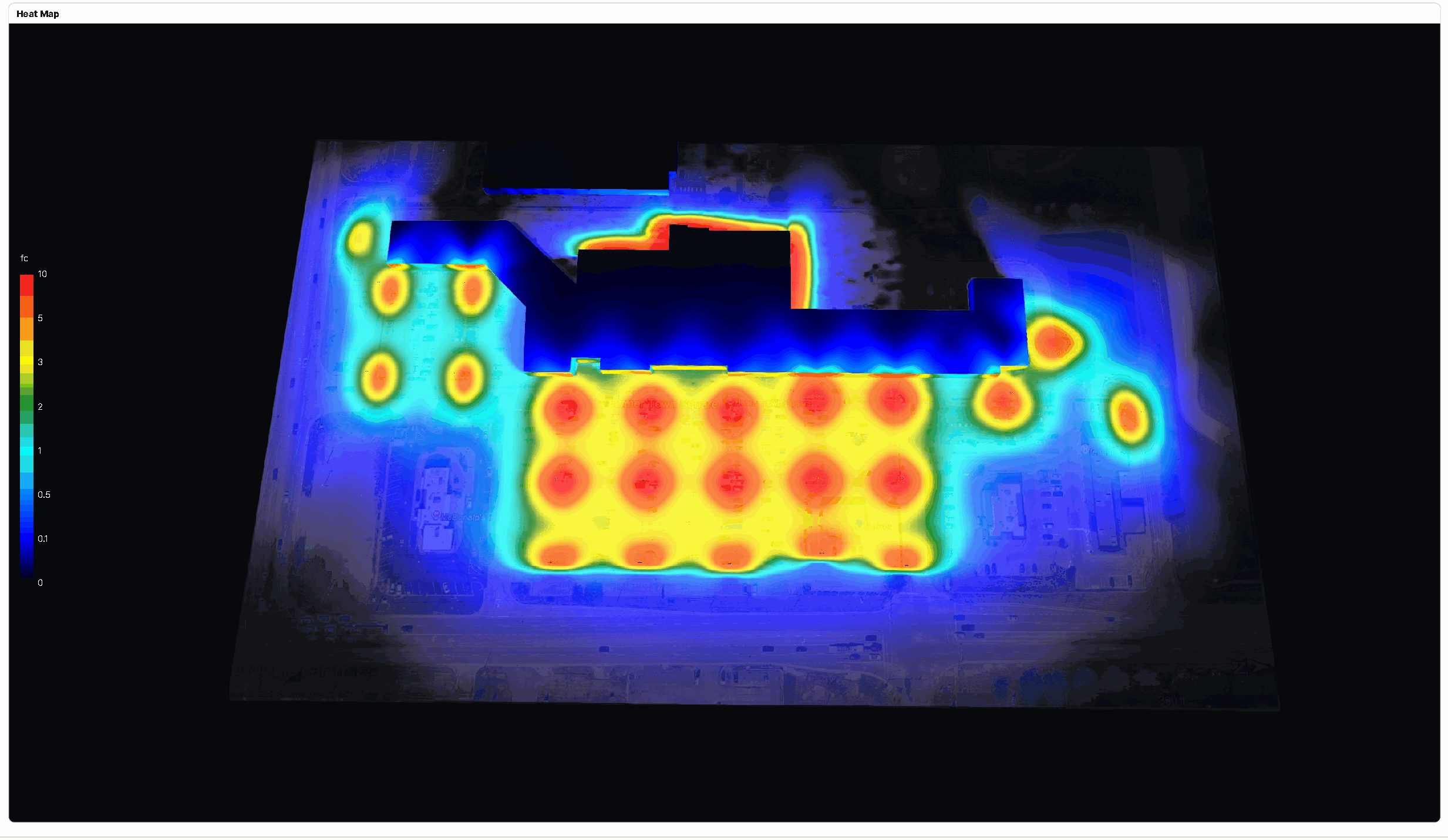

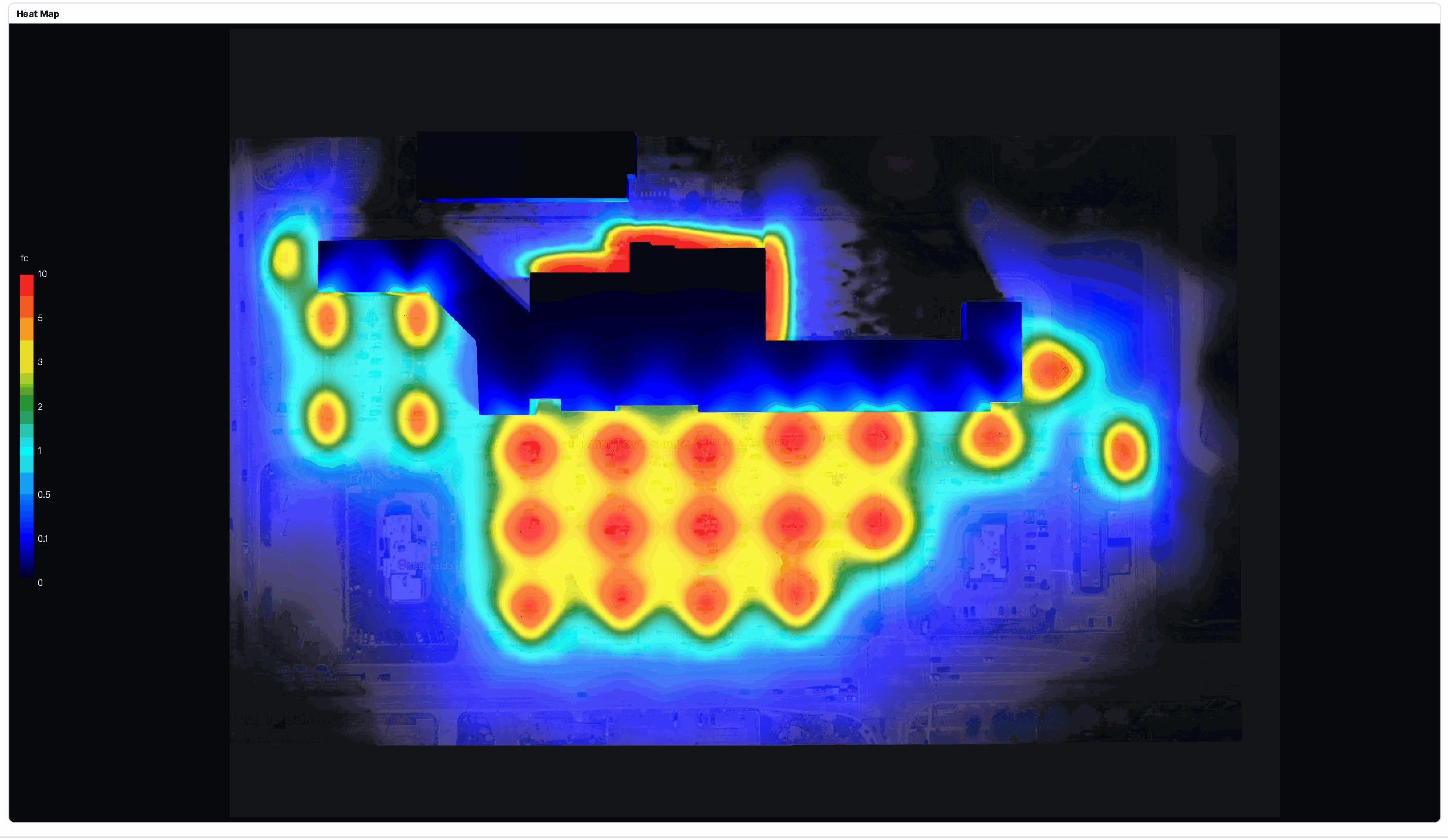

The original report visuals show the distribution of calculated light across the parking lot and around the site edges. Both heatmaps use the same displayed legend, from 0 to 10 fc, with intermediate labels at 0.1, 0.5, 1, 2, 3 and 5 fc. The top of that displayed scale is not the maximum calculated value: the summary reports 20.1 fc in both designs.
The source camera angles and framing differ, so these are qualitative views rather than a perfectly aligned overlay. Use the property-line summary above to compare the reported values. The colors and map background are the original report output.

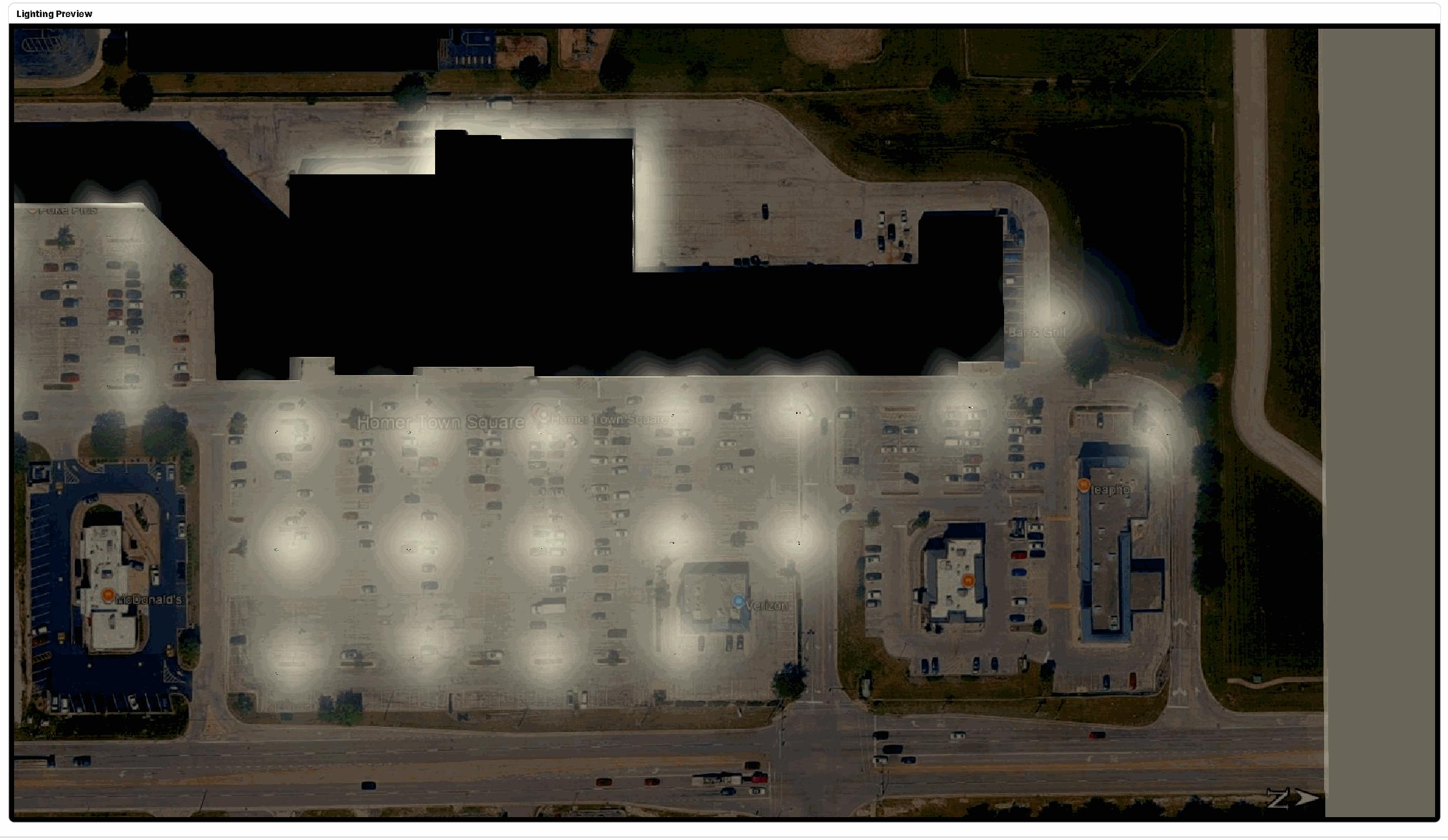

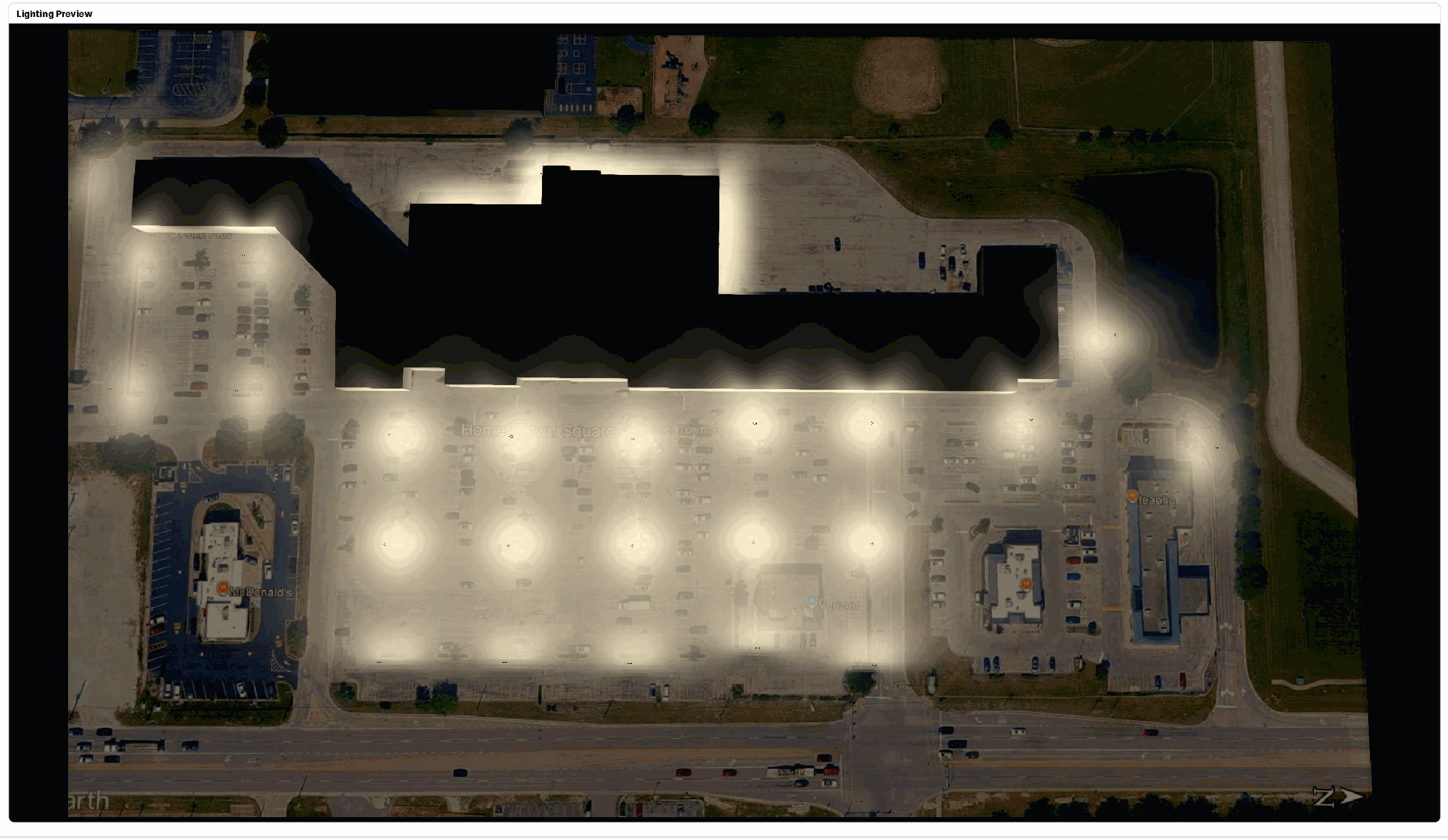

The rendered views below provide another way to understand the layout. They are simulated lighting previews, not photographs or a measurement of installed brightness. Exposure and camera settings have not been verified as identical, so the renderings should not be used to calculate the percentage improvement.
Check the parking area as well as the boundary
A lower boundary result is only one part of reviewing a parking lot revision. The parking spaces, circulation routes and relevant pedestrian areas still need to be assessed against the project’s criteria.
The broad Site summary in both reports includes a displayed minimum of zero and does not provide usable Site uniformity ratios. Its average alone cannot demonstrate adequate illumination throughout the active parking areas. A focused calculation region is needed to assess the areas that matter to the project.
Our parking lot photometric plan guide explains the wider application. For the relationship between average, minimum and maximum values, see lighting uniformity ratios.
A checklist for reviewing a revised photometric plan
The checklist below is general guidance for a design review or resubmittal. It is separate from the confidential history of this project.
- Define the concern. Identify the affected boundary segment or neighboring area and obtain the actual project criteria.
- Check the calculation basis. Confirm the relevant plane, grid, boundary locations, units and operating assumptions.
- Verify the fixture configuration. Match the photometric data to the selected model, output, optics, mounting and shielding arrangement.
- Document each revision. Mark changed heights, quantities, aiming and shield requirements so the drawing and schedule agree.
- Recalculate the affected areas. Review individual boundary values and the maximum, together with the summary.
- Recheck the useful lighting. Evaluate parking and pedestrian task areas, including minimums and appropriate uniformity metrics.
- Coordinate the installation. Confirm the installed fixtures, accessories and mounting details match the reviewed design.
Questions about parking lot light spill
Does lowering a light pole always reduce light spill?
No. The result depends on the fixture distribution, mounting location, aiming and geometry. Compare calculated options rather than assuming that a lower mounting height will solve every boundary concern.
Does this case establish a permitted property-line maximum?
No. A specific property-line limit was not confirmed for this example. Obtain the applicable project and jurisdictional criteria before making a compliance decision.
Did shields alone produce the reported reduction?
The available comparison does not isolate their effect. Height and fixture quantity changed too, and the shield representation in the model has not been established.
Are these installed measurements?
No. The figures are calculated values from the before-and-after reports. Installed performance requires a separate measurement and verification process.
Request a review of your parking lot lighting
If your project needs less light toward a street or neighboring property, send the current plan, fixture data, mounting details and the area of concern. Include any actual review comments or applicable limits so the calculation can address the right question.
